Automatic paper rope Making machine

The equipment is mainly used for high-speed production of round paper rope, paper rope making equipment is hand-held paper bag machine supporting auxiliary equipment, the main function of the equipment is according to the needs of the cut good strip base paper feeding after winding to make the required diameter of the round paper rope, while the production of round paper rope can be recovered into a whole roll.

Key words:

paper bag machine

Classification:

Equipment display

Consultation Telephone:

13770875988

Get Quote

Online consultation

Product Details

Product Introduction

This machine is designed to make twisted paper rope with high speed. as an auxiliary equipment for paper shopping bag machines wth handles inine.it uses paper tape as raw material, twists it into rope with required diameter through high speed spinning and rewinds them together to be a paper rope roll.

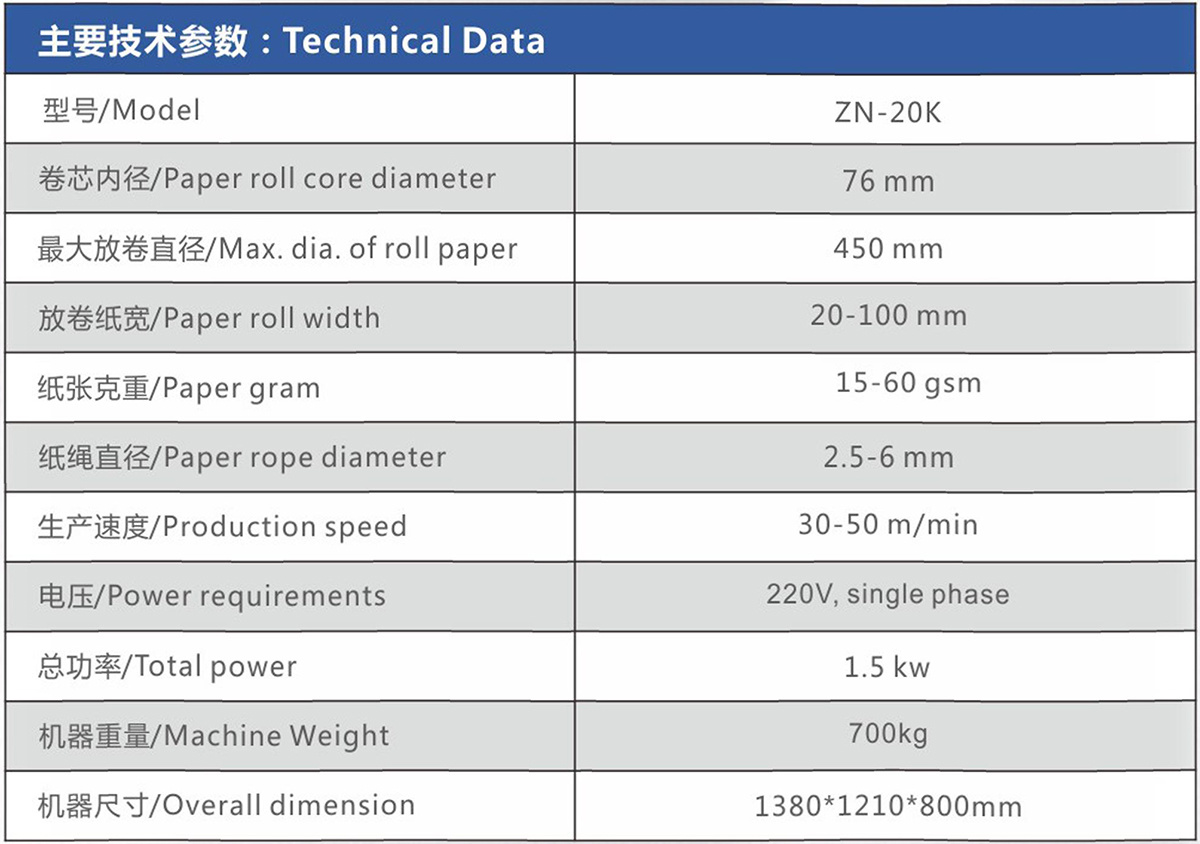

Product Parameters

Main technical parameters	ZN-10K	ZN-20K
Paper roll core diameter	76mm	76mm
Max.dia.of roll paper	500mm	450mm
Paper roll width	20-100mm	20-100mm
Paper gram	15-60g/m²	15-60g/m²
Paper rope diameter	2.5-6mm	2.5-6mm
Production speed	16-20m/min	30-50m/min
Power requirements	220V	220V
Total power	1.5kw	2.2kw
Machine Weight	250kg	700kg
Overall dimension	15001300100mm	15801750930mm
